PRECISION SCINTILLATOR ARRAYS

FOR RADIATION IMAGING

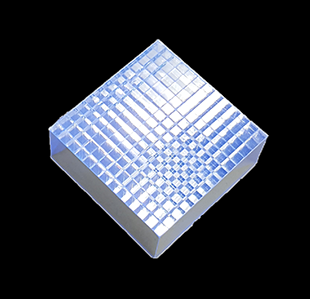

Precision Array
13 x 13 Array of PSD Plastic Scintillator
Mates precisely to H9500 Multi-Anode PMT
Pixel Size: 2.80 mm x 2.80 mm x 15.0 mm
Pixel positions accurate within 0.05 mm



Precision imaging arrays of Eljen plastic scintillators consist of highly polished square bars assembled into a single physical unit. ESR™ reflector foil is bonded to all surfaces inside the block for light piping within each pixel and to achieve > 70% optical isolation between pixels. Multiple layers of ESR can be used to increase pixel isolation. A single layer of ESR is also laminated to the external sides and the closed face of the array.

(ESR: Trademark of 3M Corporation)



GENERAL ARRAY SPECIFICATIONS
Scintillator Types Most Eljen plastic scintillators
Pixel Square Cross-Section 0.75 mm to 10 mm
Pixel Length 10 mm to 60 mm
Pixel Width Tolerance (typical) ± 0.02 mm
Pixel Position Tolerance (typical) ± 0.08 mm absolute in both directions
Lateral Array Sizes Available 20 x 20 mm to 200 mm x 200 mm
